USB 3.0 is not only possess the high usability and flexibility of USB 2.0 ,but also make a qualitative leap in data rate-480Mbps of USB 2.0 to 5Gbps. Considering this property, the JPLY engineers decided to adopt and developed this new technology in the field of industrial camera.
It's specially designed for professional clients who both use camera with 5Mega or above and have strict requirement in capturing rate at the same time.

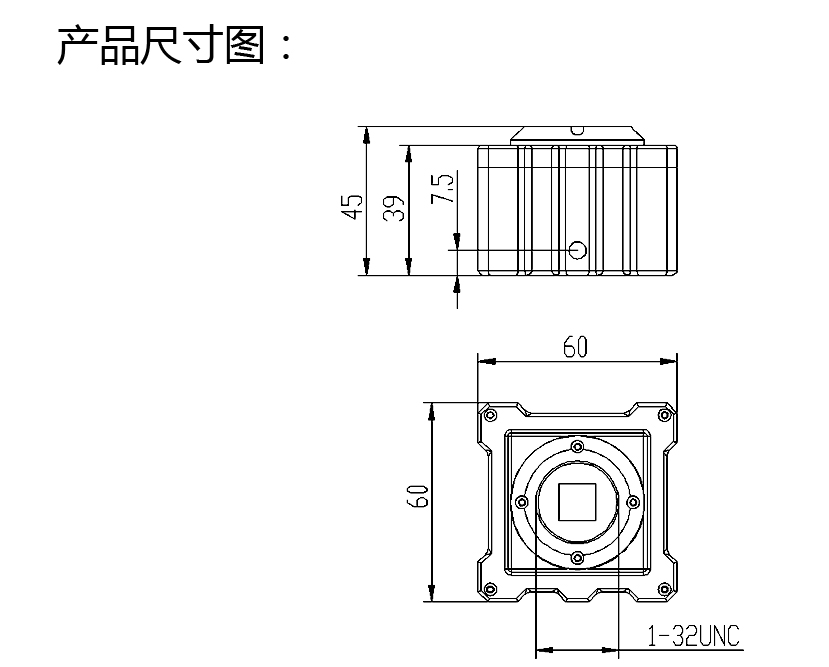

Model | Description | Dimensions |
Datasheet |
G1TD05C | 5.0 megapixel USB3.0 CMOS Camera, Color | ||
G1TD05M | 5.0 megapixel USB3.0 CMOS Camera, Monochrome | ||
G1TD14C | 14.0 megapixel USB3.0 CMOS Camera, Color | ||
G1TD10C | 10.0 megapixel USB3.0 CMOS Camera, Color |
Model |
G1TD05C/M |
G1TD10C |
G1TD14C |
Resolution | 2592 x 1944(5.0 pixel) | 3840 x 2748(1.0pixel) | 4348 x 3288(1.4pixel) |
Sensor Model | 1/2.5" CMOS | 1/2.3" CMOS | 1/2.3"CMOS |
Sensor Dimension | 2.2μm x 2.2μm | 1.67μm*1.67μm | 1.4m*1.4μm |
Scan Method | Progressive Scan | Progressive Scan | Progressive Scan |
Sensibility | 1.4V/Lux-sec(550nm) | 0.31V/LUX-sec(550nm) | 0.724V/LUX-sec(550nm) |
Frame Rate | 14fps@ 2592 x 1944, | 7fps@ 3840 x 2748, 17fps@ 1920 x 1080 bin |
12fps@4348 x 3288, 32fps@ 2592 x 1944(ROI), 28fps@2048 x 1536(BIN), 71fps@ 1920 x 1082(ROI), 102fps@1024 x 768(ROI), 64fps@800 x 600(SUM |
Shutter | Global Shut | Global Shut | Global Shut |
SNR | 44dB | 40.5dB | 35.5dB |
Spectral Response | 400nm~1100nm | 400nm~1100nm | 400nm-650nm(with IR-filter) |
Auto Exposure Control | 37us-2.4s | 49us~3s | 0.043ms-300ms |
Working temperature | 0°C ~ 60°C | 0°C ~ 60°C | 0℃~45℃ |
Working Humidity | 0-85% | 45-85% | 10%-90%RH(无凝结) |
Inter Face | USB3.0 | ||
White Balance | White Balanc | ||
Lens Mount | CS interface optional C | ||
Busy Indicator | LED | ||
Power | DC 5V ± 5% | ||
Current | ≈500 mA | ≈200 mA | ≈500 mA |
Software | spectrumsee image analysis software with modular designing,including image previewing,capturing,analysing,processing,sharing fuction. It gives users the latest image processing experiences. The software fuction:image capturing,time lapse,measuring,data exporting image mosaic,depth of field overlaying,text instruction inserting,etc. |
JPLY USB3.0 CMOS camera G1TD series is a smart designing and easy-to-use camera with an excellent price/performance ratio. G1TD series cameras suit for a large variety of industrial and scientifc applications:
• Machine vision and inspection
• Industrial Inspection and measurment
• Microscopy imaging and analysis
• Educational demonstration
• Lab automation
• Medical research
• Optical charactor recognize
